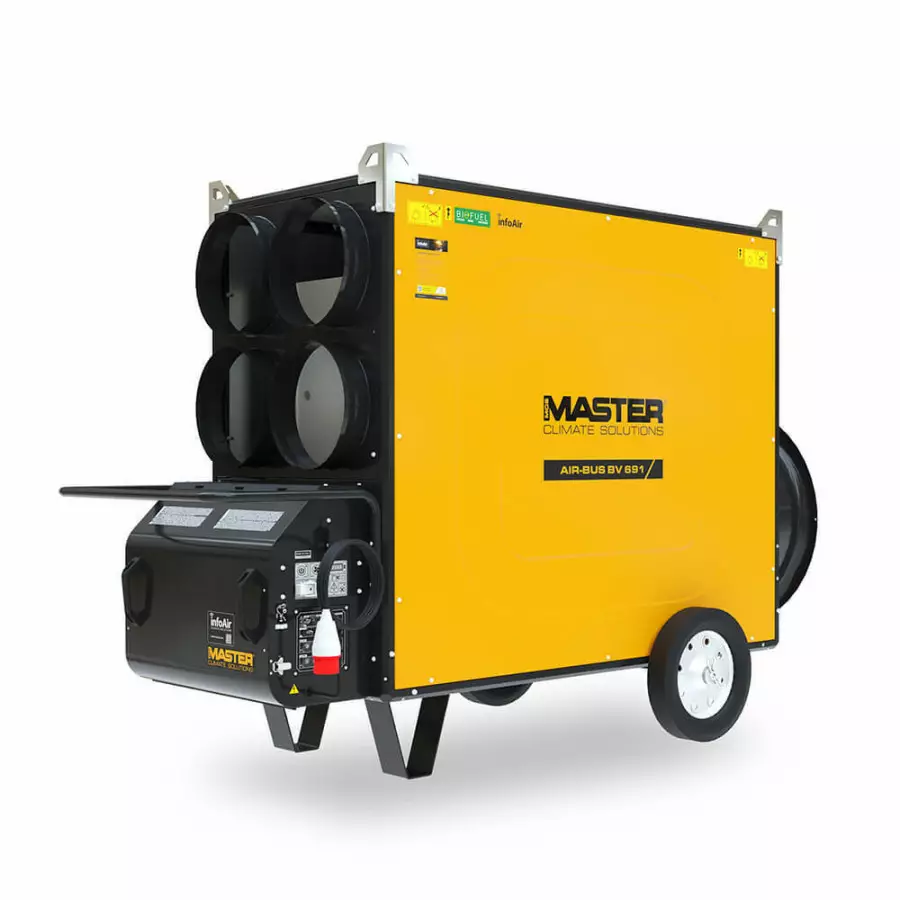

Oil heater bv 691 te 3ph, 225 kw, 4 air outlets, master

Key Features:
Strong and robust steel frame with metric bolts
Powerful fan
Air pressure: 250 Pa
Digital control of the combustion
Unique 'cold start' button for very cold environments
Possible connection to 4, 2, or 1 flexible tubes
Flue gas exhaust
Separate Riello oil burner
Summer/Winter switch for ventilation only
Electronic flame control with photocell
Fan-Limit thermostat with automatic reset
Limit thermostat with manual reset
Fuel preheater
Two oil filters: oil pump filter and suction filter
Quick connector to external tank (optional)
High-efficiency heat exchanger made of stainless steel pipes
Stainless steel combustion chamber
Robust wheels included
4 robust crane hooks
Fuel compatibility: biofuel HVO 100, diesel, or kerosene
Compatible with remote monitoring system InfoAir


Specifications Units BV 691 TE - 1 way
Heating power kW 225
Heating powerBtu/h768000
Heating powerkcal/h193500
Air flow m³/h 12800
Fantype Axial
Air pressure Pa 250
Thermostat control Analogue or digital
Fuel consumptionl/h 1,44
Power supply V/Hz 380-400/3ph/50
Electric power kW 2,8
Rated current A 6,5
Electronic box protectionIP44
Flue tube Ømm200
Air outlet diametermm 1 x 700
Product size (l x w x h) mm 2200 x 985 x 1620
Box size (l x w x h) mm2150 x 840 x 1560
Net/gross weight kg 380/410



Suitable for:
Agriculture
Automotive
Commercial buildings
Construction
Emergency services
Events and festivals
Industrial, factories and production
Military and aerospace
Rental companies
Transport and logistics
