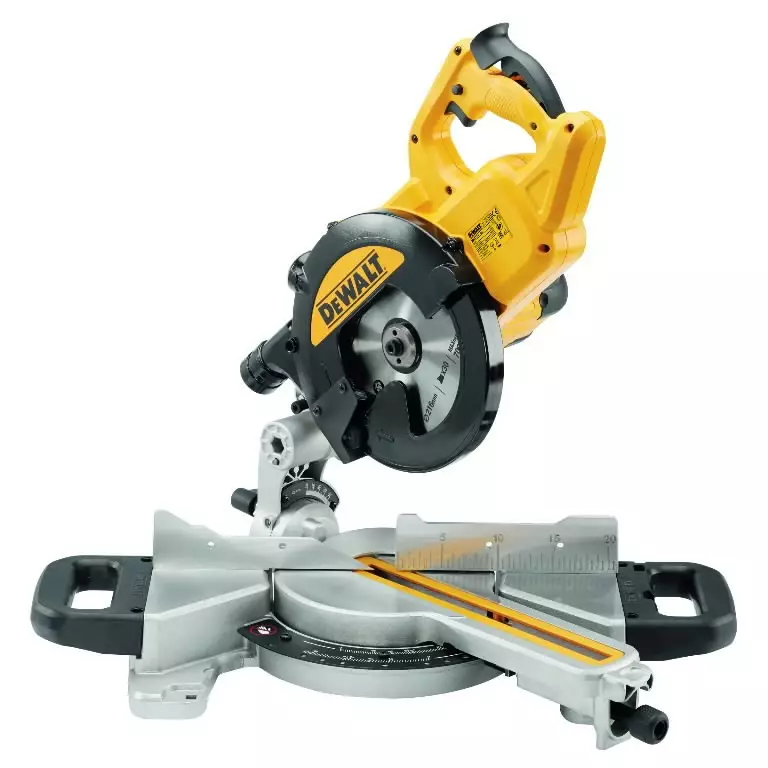

Crosscut and mitre saw dws774, 216mm, xps, dewalt

Power Input: 1400 Watts
Power Output: 1100 Watt
Blade Speed: 4500 rpm
Blade Diameter: 216x30 mm
Bevel Capacity: 48 °
Mitre Capacity [right/left]: 48/48 °
Cutting Capacity at 90°/45° (W x H): 173 x 62 mm
Cutting Capacity at 90°/90° (W x H): 250 x 62 mm
Cutting Capacity at 90°/90° (W x H): 250 x 60 mm
Cutting Capacity at 45°/90° (W x H): 177 x 62 mm
Cutting Capacity at 45°/90° (W x H): 177 x 60 mm
Cutting Capacity at 90°/45° (W x H): 265 x 48 mm
Max. Cutting Capacity at 45°/45°: 190x48 mm
Max. Depth of Cut: 70 mm
Weight: 12.0 kg

The classic pull saw design improved and updated for the modern user
New 1400 Watt motor for powerful cutting in all materials
Improved Dust extraction efficiency
XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
The base and fence have been machined to meet the accuracy requirements of the most demanding applications
New head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
Fixed left & right hand fences with measuring scale for improved material support and management
Compact internal rail design for huge cutting capacity in a highly transportable format
New carry side handles for easy transportation
Designed for wood cutting only and must not be used to cut any metal (Ferrous or Non Ferrous)

Scope of delivery:
TCT tooth saw blade, blade spanner, material clamp
